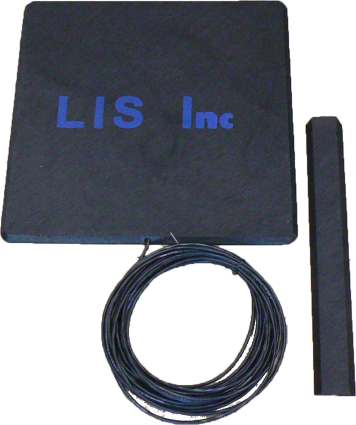

LIS-SM8 Surface Mount Inductive Loop

The LIS-SM8 Surface Mount inductive loop is designed for permanent installation where conventional loop systems are not permitted, difficult to install or are not cost affective.  The compact foot print along with the low profile makes this unit ideal for many applications. This design offers a reliable, cost-effective alternative to other methods of vehicle detection.

Product Description

The LIS-SM8 Surface Mount inductive loop is designed for permanent installation where conventional loop systems are not permitted, difficult to install or are not cost effective.  The compact foot print along with the low profile makes this unit ideal for many applications. This design offers a reliable, cost-effective alternative to other methods of vehicle detection. This Surface Mount is ideal for installation on post tension concrete where it may not be possible to cut the surface for a conventional loop due to reinforcement or water membrane damage.  However it’s also well suited for all forms of gate / door and system control from surface parking lots, car wash and fast food applications. This loop may be used in temporary application such as vehicle counts at special events or as a temporary replacement for a defective Sub Surface loop









.



  • Compact Size – 24″ L x 24″ W x 5/8″ H
  • 50 Foot Lead-In Cable
  • Loop Wires totally encapsulated in Durable Polyethylene
  • Water proof, Not Affected by Water, Vapors or Freezing
  • Lead Cable Protection, Two Feet long Included. Extra sections available
  • Compatible with all Vehicle Detectors
  • Epoxy Bonding
  • Mechanical fasteners
  • Mastic Tape
