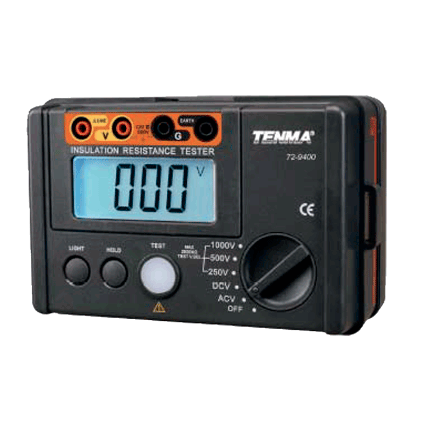

Tenma 72-9400 megger

Insulation Resistance Tester.

Product Description

Insulation Resistance Tester

General Characteristics

  • Power: 1.5 V Alkaline Battery  x 6.
  • LCD Size: 70.6 × 34 mm.
  • Product Colour: Orange and Grey.
  • Product Net Weight: 500 g.
  • Product Size: 150 × 100 × 71 mm.
  • Standard Accessories: Battery, Probe, Alligator Clip, Test Lead, English Manual, Carrying Bag, Gallus.
Basic Functions Range Best Accuracy
Output Voltage 250 V / 500 V / 1,000 V ±10%
Nominal Current 250 V / 500 V 1 mA ±10%
500 V / 1,000 V 1 mA
1,000 V / 2,500 V 1 mA
Short Circuit Current < 2 mA
Insulation Resistance Measurement 250 V: 3 MW to 2,000 MW ±3% + 5
500 V: 3 MW to 2,000 MW
1,000 V: 3 MW to 2 GW
Voltage Measurement 1,000 V dc ± (2% + 3)
750 V ac
Special Functions
Auto Ranging
Low Battery Display
Alarm Light Display
Display Backlight
Alarm Buzzer
