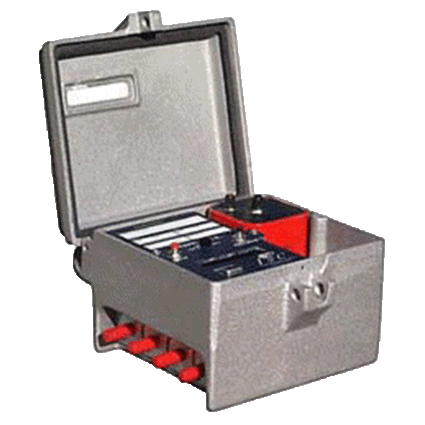

Traffic A.C.E

The Traffic A.C.E. is designed to allow up to four inputs from a variety of sensors. The Standard 16-character LCD allows the user to view all four channels of data without the use of an external display. Once the data has been retrieved, the totals can be hand copied from the display or downloaded to a computer via the RS232 port.

Tag:

Product Description

  • 1 to 4 inputs.
  • Tube, loop, piezo and contact closure.
  • 16- character LCD display.
  • Programmable stop timer.
  • Easy-to-use two-button programming.
  • Stores over 30 days of data.
  • Optional Speed and FHWA class.
  • Battery life over one year.
  • Collects Class, speed and volume information simultaneously.

The Traffic A.C.E. is designed to allow up to four inputs from a variety of sensors. The Standard 16-character LCD allows the user to view all four channels of data without the use of an external display. Once the data has been retrieved, the totals can be hand copied from the display or downloaded to a computer via the RS232 port. This information can be brought back to the office for extensive editing, reporting and storage via the Road Reporter software program. The Road Reported software program is compatible with many existing traffic counters.

The Traffic A.C.E. accumulates the total volume of vehicles for a specified period of time; in addition, the Traffic A.C.E. will collect and store 15-minute intervals of data to memory. The unit can simultaneously or independently collects volume, speed and axle classification data. Classification and speed data are collected into 14 bins each. Classification, speed and total volume data are all displayed on one screen.



 Specifications
Enclosure:  Cast aluminum (optional powder coat paint)
Stop times:  1 to 10 days or continuous
Data storage:  E Prom
Capacity:  30 days
Temperature: – 40°F to +160°F
Dimensions:  9″ x 7″ x 5″
Weight:  Less than 8 lbs.
Display:  16 character LCD
Accuracy:  Meets or exceeds TMG and ASTM standards
